EM10 - Permanent Split Capacitor (PSC) Gearmotor

EM10 - AC Induction Motor
EM10 - AC Induction Motor
EM10 - AC Induction Motor-2

Voltage: 110 - 240 VAC, 50/60 Hz


Rated Torque: 500 in-lbs

Motor or Gearmotor:
Gearmotors
Voltage:
AC
Gearing:
Parallel Shaft
Winding:
PSC

Preloader

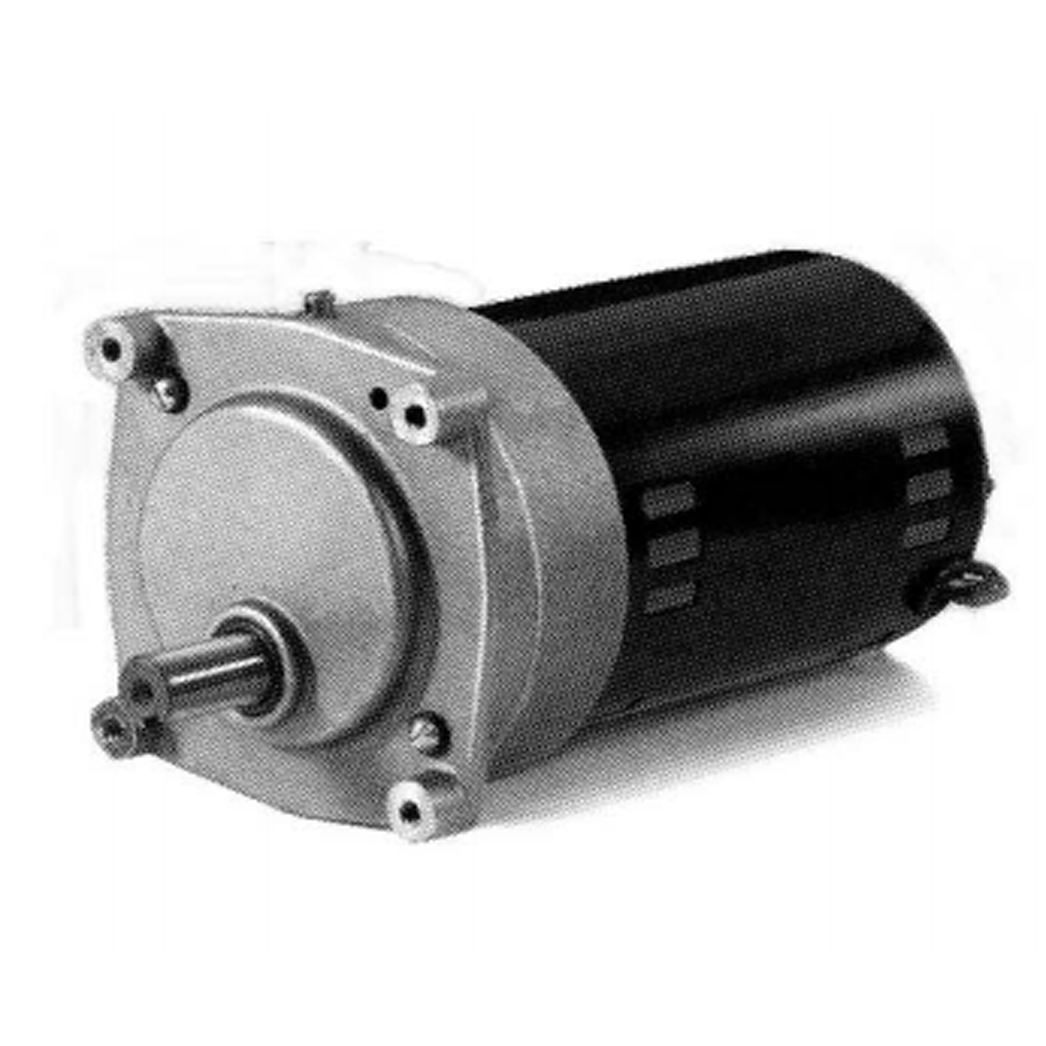

EM10 - AC Induction Motor




110 - 240 Volt AC, 50/60 Hz
Torque up to 500 in-lb

Construction Features3.8" TM basemotor motor
Thermally protected
Class B insulation
Low noise helical gears
Ball / needle bearings
Reversible
Continuous dutyOptions2 or 4 pole windings
PSC, capacitor start / run, or split phase
Single phase or poly-phase
Multi-speed or synchronous speed
Class F insulation
Cooling fan & shroud
TENV or open designTypical Applications:
  • Heavy duty power transmission
  • Ice harvesting equipment
  • Restaurant equipment
  • Ice slush machine main drive
Output Shaft:
  • Diameter: .500in./12.700mm
  • Custom length
